Description

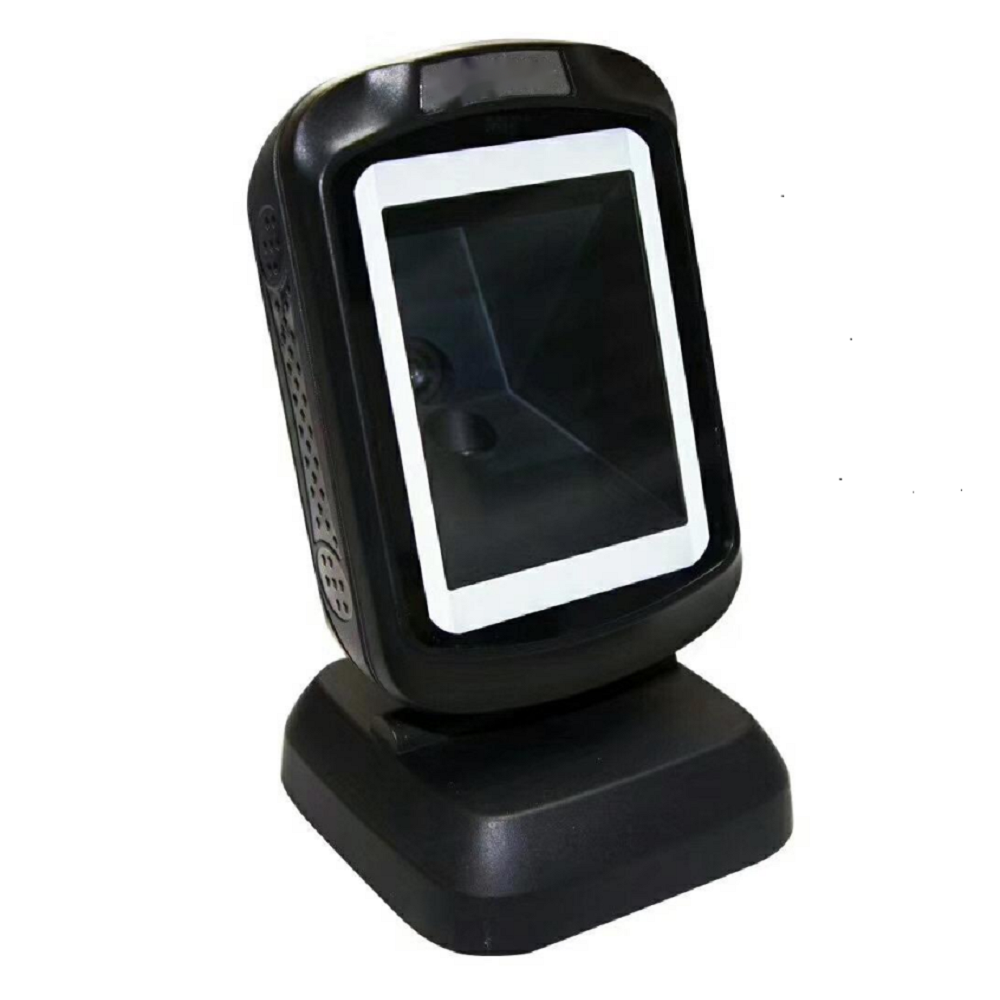

| Model No.: | SX-112A1 |
| Physical Parameters | |
| Material | ABS+PC |
| Power Suply | DC 5V 2A |
| Power Consuption | 0.80W(Working); 1.65W(Stand By); 2.34W(Peak) |
| Weight | 294.0g±5g（Not include cable） |
| Dimension | L * W * H：146.99 * 85.27 * 89.97（mm） |
| Color | Black |
| Performance Parameters | |
| Interface | USB；（RS232 Serial Port optional） |
| OS Suppot | Linux，Android，Windows XP、7、8、10，MAC |
| Language | English(US)；Belgian；Finnish；French；German；Italian；Swedish；English(UK)； |
| Sensor | Flat CMOS Sensor 800 * 600 |
| Illumination | Red 617nm LED |
| Processor | 32-bit ARM MCU + DSP |
| Moving Tolerance | 3.24m/sec |
| Resolution | Code39 4mil |
| Error Rate | 1/5 Million |
| Decoding Mode | CMOS Image |
| Trigger Mode | Auto-sensing, Continuous Scanning Mode |
| Feedback System | Buzzer+Indicator Lamp（LED） |
| Mirror Code | Support |
| Invoice Mode | Support |
| Trigger | Touch control button, change 1D or 2D decoding mode |
| Contrast | ≥30% |
| Decoding Capability | 1D: ● Interleaved 2 of 5 ● Standard 2 of 5 ●Matri 2 of 5 ●Code39-Regular ● Code39-Full ASCII ● Code32 ● Code39-Regular ● Code39-Full ASCII ● Code128 ●EAN/GSL/UCC-128 ●Codabar ●MSI ●EAN/JAN-13 ●UPC-A ●EAN/JAN-8 ●Code11 ●UPC-E0/E1 |
| 2D: ●MICRO QR ●Data Matrix ●QR | |
| Reading Angles | Rotation Angle 360°，Elevation Angle 45°，Slant Angle 45° |
| Scanning Depth | 5mil code39: 1 cm — 12 cm 13mil UPC-A : 2 cm — 30 cm 20mil code39 : 1 cm — 30 cm 6.7mil PDF417 : 1 cm — 6 cm 10mil Data Matrix : 1 cm — 9 cm 15mil Data Matrix : 1 cm — 20 cm Payment Code 128 : 0 cm — 42 cm Payment QR : 0 cm — 42 cm |
| Environment Parameter | |
| IP Grade | IP52 |
| Operation Temp. | 0 to 50℃ / 32 to 122℉ |
| Storage Temp. | 0 to 50℃ / 32 to 122℉ |
| Operation Humidity | 20% to 85% |
| Storage Humidity | 20% to 85% |
| Electrostatic Protection | 15KV Air Discharge |
| Shock Resistence | Free dropping height 1.2 Meter(Solid ground) |
